Hybrid vs All-Tube Amplifiers: Which Fits Your Setup?

Consider a hybrid amplifier when you want a tube stage but prefer the load support of a particular solid-state output design. Consider an all-tube amplifier when its specific circuit supports your speakers or headphones and you value that implementation. Do not pay for either label without checking what the valves actually do, what load the amp can drive, and how much upkeep the unit requires.

A Reddit buyer considering a tube headphone amp for Meze 109 Pro headphones received replies weighing a hybrid against transformer-coupled all-tube options. That is a real purchase decision, but the comments’ brand and price suggestions are time-specific opinions. The durable question is whether the proposed circuit supports the owner’s headphones.

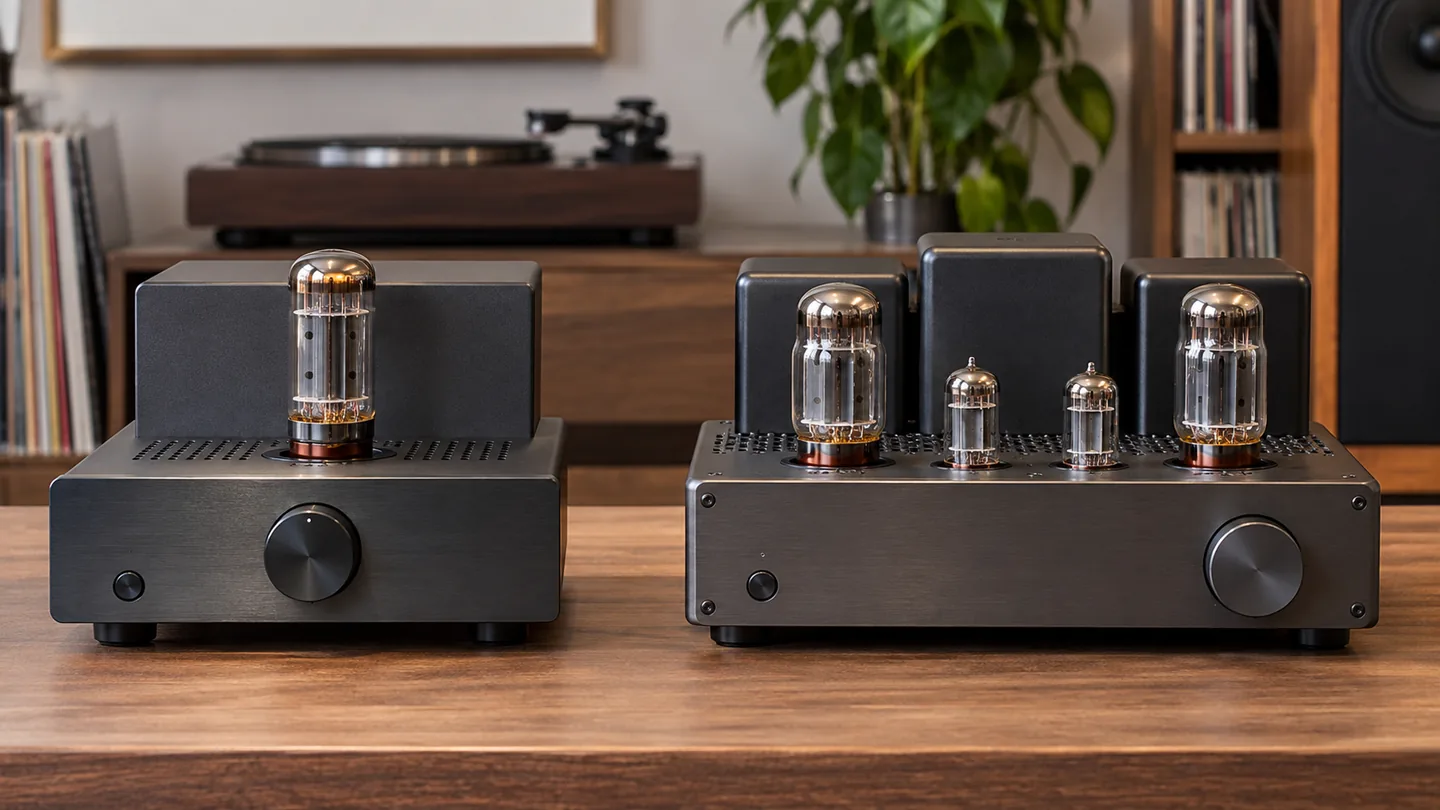

Hybrid and all-tube desktop amplifiers shown side by side

Illustrative image; not a photograph of a specific product.

Read the signal path, not the front-panel label

“Hybrid” can mean a tube voltage-gain stage with a solid-state output, but designs differ. Schiit documents Vali 3 as a tube hybrid with a tube voltage stage and a discrete bipolar output stage. Schiit documents Valhalla 3 as an all-tube, output-transformerless headphone amplifier. Those descriptions identify where each maker places the tubes; they do not prove one will sound better in another system.

Before buying, locate a block diagram or topology description and ask: Is the valve in the main audio path? Which stage delivers current to the load? Does the amp continue working without the tube? Are there separate preamp and headphone paths? A visible glowing tube is not evidence that every output stage is tube-powered.

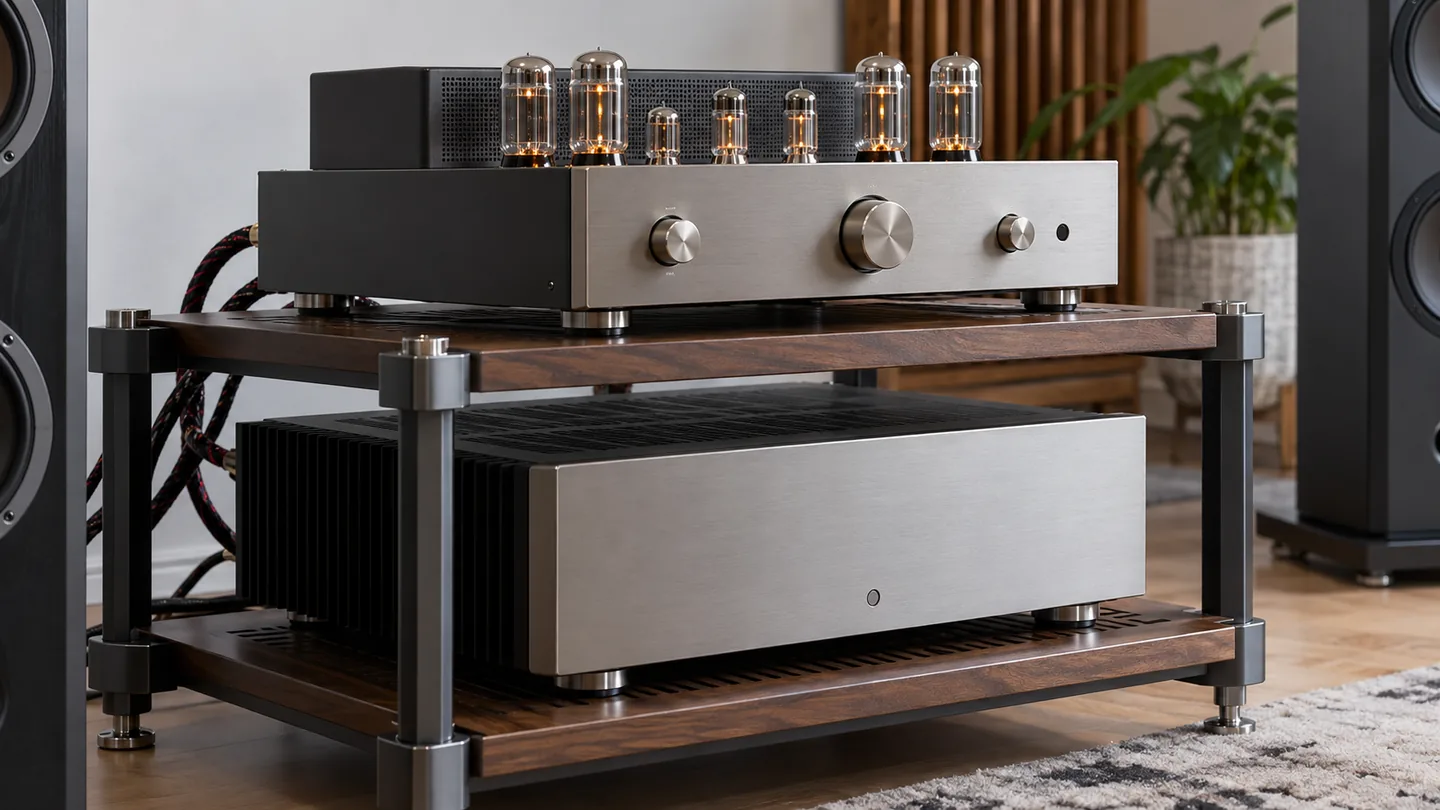

Tube preamp and solid-state power amplifier on a stereo shelf

Compare the load you actually own

For headphones, compare published output power, output impedance, and noise at the closest stated impedance, under the same gain setting where possible. Check the distortion threshold as well: Valhalla 3’s maximum-power figures use 10% total harmonic distortion, so they are not directly comparable with a rating at a lower threshold. Sensitive in-ear monitors raise a different problem from low-efficiency full-size headphones. The Vali 3 and Valhalla 3 product pages show that their specifications and settings vary; read the specific load and test condition rather than generalizing from “hybrid” or “all tube.”

For loudspeakers, confirm the maker’s permitted speaker impedance and any output-tap instructions. Sensitivity, minimum impedance, seating distance, and wanted volume determine how much headroom the system needs. A hybrid integrated speaker amp still needs to support its speaker load: Rogue Audio’s Sphinx v3, for example, combines a tube preamplifier with power specifications stated for a speaker load. An all-tube power amp may need particular taps or operating procedures. The headline circuit type does not replace a manual.

Factor in ownership and audition conditions

Both kinds of tube equipment may need replacement valves. An all-tube power amplifier can have additional output-tube and bias requirements, depending on the model. Ask about replacement availability, authorized service, ventilation, and warranty coverage. Do not infer a universal cost difference from one retailer’s current price.

Audition shortlisted products with the same headphones or speakers and familiar material at similar levels. Listen for unwanted hiss, clipping on peaks, and whether the presentation is worth the maintenance to you. Do not choose a hybrid if its valve stage contributes nothing you value. Do not choose all tube if the required load support, heat clearance, or service path is uncertain.

Use only the maker’s user-accessible controls. Hot valves can burn, and the Rogue Audio M-120 manual warns that internal voltage can remain dangerous after unplugging. Buy the documented, compatible amplifier you can hear or return. A persuasive topology label cannot substitute for those checks.
