Find Best 16uF 450V Capacitors (Expert Picks)

More importantly, finding the correct electrolytic-capacitors-tube-amps.html”>16uF 450V capacitors requires matching exact electrical tolerances and physical dimensions. A wrong canister diameter or terminal type halts your repair project immediately. Most single-phase AC motors use this value to maintain steady operating torque. You must choose between double faston terminals or flexible wire leads to match your specific motor canopy.

Industry leaders like DUCATI Energia manufacture durable poly-film units rated for continuous AC duty. For board-level power circuits, high-temp electrolytic capacitors supply essential DC filtering. As a natural result, checking the pin pitch, voltage limits, and casing dimensions upfront prevents equipment downtime. Our hand-selected picks showcase reliable, high-performance replacements for pumps, HVAC units, and power supplies.

Key Specifications of 16uF 450V Capacitors

Evaluating core electrical specs guarantees your replacement 16uF 450V capacitor handles real-world line surges. You must verify three primary parameters before installing any new component.

• Operating Voltage: A 450VAC rating defines the maximum continuous operating voltage. Running a unit above this rating degrades the dielectric layer rapidly, Because of this, a 450V rating provides essential headroom against voltage spikes in single-phase AC motors.

• Capacitance Tolerance: Standard industrial run capacitors feature a ±5% capacitance tolerance. Consequently, a wider variance shifts the phase angle inside motor windings. This phase shift reduces running torque and increases operating heat.

• Temperature Rating: Industrial environments require strong thermal performance. Standard poly-film units operate safely between -25°C and +85°C. Choosing heat-rated components prevents casing expansion inside tight pump enclosures.

Voltage Ratings, Capacitance Tolerance, and Temperature Limits

When you replace a failing component, you must match the exact electrical ratings to keep your equipment running. As a result, choosing the right brand and design prevents premature failure in demanding environments.

• DUCATI Energia 4.16 Series: This poly-film can capacitor serves as an industry standard for single-phase AC motors. Due to its self-healing film design, the unit handles heat spikes up to 85°C without losing capacitance. You can order these with double faston terminals or flexible wire leads to fit your existing mounting brackets.

• GETI GMC Series: You choose this model when you need a rugged motor run component for pumps and compressors. For example, its heavy-duty casing resists vibration while keeping a tight ±5% tolerance across its entire operating voltage range. You plug the standard quick-connect terminals directly into your motor wiring harness to restore full starting torque.

• F&T 450V High-Temp Series: Unlike film-based AC run units, these high-voltage electrolytic capacitors serve board-level filtering roles in power supplies and audio amplifiers. Consequently, they smooth out heavy voltage ripples on DC rails. You mount these compact aluminum cans on circuit boards where space remains tight.

By picking one of these tested models, you guarantee a proper electrical match and eliminate costly trial-and-error during repairs.

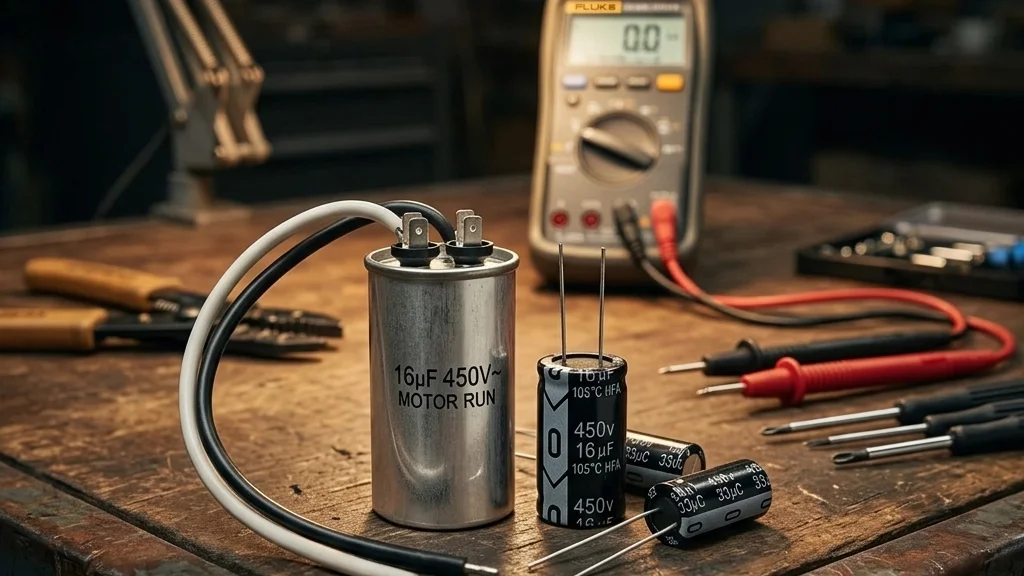

Terminal Configurations: Wire Leads vs. Double Faston Terminals

Beyond matching electrical specifications, you must select the correct terminal style to ensure a fast, drop-in replacement. Component manufacturers build 16uF 450V units with either push-on blades or stranded wire leads.

Double faston terminals feature standard 6.3 mm spade connectors mounted on the cap of the can capacitor, Because each pole offers two terminal blades, you can attach auxiliary control wires or bleeder resistors without modifying factory harnesses. Consequently, double faston terminals streamline component swaps inside tight motor control boxes on single-phase AC motors. You slide the female connectors directly onto the blades to secure the electrical contact instantly.

Flexible wire leads feature stranded copper conductors sealed into the top casing. Due to their flexible design, wire leads bend easily within shallow junction boxes where rigid terminals hit metal covers. As a result, maintenance techs choose wire leads for submersible pumps and sealed HVAC fan assemblies. You connect these wires using insulated crimp splices or screw-type terminal blocks inside weather-tight enclosures.

Matching your equipment’s original connection style eliminates unnecessary wiring work. Due to incorrect terminal selection, technicians waste valuable field time splicing wires and risking insulation degradation.

Primary Applications for 16uF 450V Capacitors

Once you select the correct terminal style, you must match the capacitor design to your specific equipment application. Due to continuous operational demands, single-phase AC motors rely on film-based 16uF 450V capacitors to maintain a stable rotating magnetic field. Consequently, HVAC compressor motors, circulation pumps, and shop blowers require run capacitors capable of handling constant AC voltage without thermal degradation. In these inductive motor circuits, the capacitor stays energized throughout the entire run cycle. As a result, installing a run-rated can capacitor ensures uninterrupted torque and prevents motor winding burnout, Because of this continuous duty requirement, you must never substitute a run unit with a temporary motor start capacitor.

Single-Phase AC Motors, Pumps, and Compressors

Because motor windings create high back-EMF, choosing a robust 16uF 450V film component prevents immediate field failures. Industrial-grade models like the DUCATI Energia 4.16.10 series utilize self-healing polypropylene film inside a rugged metal or plastic can capacitor housing. Consequently, these units withstand transient voltage spikes well above the standard operating voltage during heavy motor cycling. Due to continuous current exposure in pump motors, sub-standard capacitors degrade rapidly and drop below their rated capacitance tolerance. As a result, your motor draws higher operating current, overheats, and trips thermal overload relays.

When replacing components on high-duty compressors, verify that the replacement features double faston terminals for clean auxiliary connections, Because standard single-blade spade connectors limit your wiring options, dual 6.3 mm blades simplify tapping into fan or pressure switch circuits. Due to intense vibration levels in refrigeration compressors, always secure the can capacitor using a threaded bottom stud or a heavy-duty mounting clamp. As a result, you eliminate mechanical fatigue on the physical connections and prevent terminal breakage.

Never install polarized electrolytic capacitors in these AC motor applications, Because polarized units explode when exposed to alternating current, you must strictly specify non-polarized film capacitors rated for continuous 450V AC service.

High-Voltage Audio Amplifiers and Electrolytic Capacitors in Power Supplies

While single-phase AC motors require non-polarized film designs, high-voltage tube amplifiers and DC power supply circuits depend on polarized electrolytic capacitors to smooth out continuous voltage ripple. Consequently, selecting the correct 16uF 450V replacement model depends directly on your chassis layout, heat exposure, and terminal connection style.

Top Expert Picks for High-Voltage Audio and Power Supplies

• F&T 16uF 450V Axial Electrolytic Capacitor: Technicians choose F&T for classic tube amplifier restorations and high-voltage DC power supply filters, Because these axial electrolytic capacitors feature a narrow cylindrical body, you can solder them directly into tight point-to-point wiring spaces. Due to low equivalent series resistance (ESR) and a 105°C temperature rating, F&T components deliver stable DC filtering near hot vacuum tubes. As a result, you eliminate low-frequency ground hum without modifying original vintage mounting brackets.

• DUCATI Energia 16uF 450V Polypropylene Can Capacitor: You should select DUCATI Energia when servicing high-voltage AC line filters or heavy-duty single-phase AC motors, Because this heavy-duty can capacitor incorporates standard 6.3 mm double faston terminals, you attach spade connectors instantly without heating up a soldering iron. Due to its self-healing film dielectric construction, the unit absorbs transient voltage spikes without shorting out. Consequently, this design provides long-term reliability in severe high-vibration enclosures.

• JJ Electronic 16uF 450V Radial Can Capacitor: Audio builders select JJ units for multi-stage power supply filter banks, Because these aluminum can units provide a high 450V DC operating voltage, they easily withstand raw power transformer peak outputs. As a result, your amplifier maintains a rock-solid DC supply rail during maximum power output.

When purchasing replacement parts, verify your circuit requirements before placing an order. Never install a motor start capacitor in power supply or continuous run circuits, as start units fail within seconds under continuous electrical duty. Choose axial electrolytic capacitors-for-amplifier-case-study/”>capacitors for tight amplifier chassis. select sturdy can units with double faston terminals for high-vibration power supply enclosures.

Top Recommended Brands for 16uF 450V Capacitors

You must match component topology directly to your hardware requirements, Because high-voltage tube circuits and single-phase AC motors demand different stress tolerances, selecting the right brand prevents premature circuit failure.

• GETI GMC Series Motor Run Capacitor: You should select GETI units for HVAC compressors and single-phase AC motors, Because these film units utilize standard 6.3 mm double faston terminals, you slide spade connectors on quickly. Due to the flame-retardant plastic shell, the component withstands continuous 450V operating voltage exposure without thermal degradation. As a result, your equipment maintains steady starting torque over extended duty cycles.

• F&T Dual Electrolytic Audio Can Capacitor: Bench technicians select F&T axial and dual can units for vintage amplifier power supplies, Because F&T manufactures these electrolytic capacitors with low ESR ratings, you drop low-frequency ripple noise significantly. Consequently, your amplifier outputs clean DC power to sensitive preamp vacuum tubes.

• DUCATI Energia 416 Series Film Can Capacitor: Industrial electricians rely on DUCATI Energia film units for high-vibration control cabinets, Because this metal can capacitor uses self-healing polypropylene film, internal micro-faults clear themselves automatically without shorting out. As a result, you avoid costly downtime on critical pump motors.

GETI GMC Series Motor Run Capacitors

To prevent motor overheating and circuit failure, you must choose a replacement unit built for heavy industrial duty, Because GETI constructs the GMC series with metalized polypropylene film, the component self-heals immediately after voltage transients. Due to this self-healing film dielectric, you prevent sudden shorts across single-phase AC motors under full load.

As a result, your drive system maintains steady phase shifts without pulling excessive amperage. You wire the component directly into existing control boxes because GETI includes standard 6.3 mm double faston terminals on top. Due to the flame-retardant plastic shell, this can capacitor handles high ambient temperatures better than standard electrolytic capacitors in enclosed spaces.

you avoid housing distortion and internal gas pressure build-up over time, Because a motor start capacitor will fail under continuous operation, you must always specify a continuous-duty run model like the GMC series for persistent 450V operating voltage exposure. As a result of installing this specific series, your equipment operates reliably through demanding start-stop cycles.

F&T Dual Electrolytic Audio Can Capacitors

While motor run units stabilize industrial machinery, tube audio power supplies demand specialized electrolytic capacitors to filter ripple voltage, Because F&T manufactures these dual 16uF 450V can capacitors with extremely low Equivalent Series Resistance, the internal foil layers dissipate ripple current efficiently. As a result, your high-voltage audio amplifiers operate with minimal hum and exceptionally stable DC plate voltage, Because F&T packs two independent 16uF sections into a single compact aluminum housing, you save valuable space inside crowded vintage chassis layouts. Consequently, you replace multiple failing axial parts using a single central mounting location. You solder lead wires directly to the heavy-duty pin terminals on the base, Because these German-engineered units feature a true 450V continuous operating voltage rating up to 85°C, the dielectric layer resists heat degradation from adjacent vacuum tubes. As a result of this thermal durability, you prevent power supply drift and protect downstream output transformers from catastrophic short circuits.

Selection and Sizing Guide for Replacement Components

Because replacement 16uF 450V capacitors vary in outer diameter and total length, you must measure your enclosure space before buying a unit. As a result, you avoid physical interference with cabinet walls and nearby heat-generating components, Because motor run capacitors rely on either stud-bottom bolts or side mounting clamps, matching the original mechanical design secures the part against heavy equipment vibration. Consequently, your motor assemblies retain structural integrity during high-duty operation.

Verifying Physical Dimensions and Mounting Clamp Styles

Because physical space and mounting hardware dictate component fit, selecting an expert-recommended 16uF 450V replacement guarantees seamless mechanical installation. You must match the mechanical casing profile and connection style to your specific system requirements.

• DUCATI Energia 416.10 Series: Because DUCATI Energia equips their 416.10 series with standard 6.3mm double faston terminals and an M8 threaded stud, you thread the unit directly into industrial motor housings. Consequently, you ensure robust electrical contact and withstand heavy mechanical vibration in single-phase AC motors.

• GETI GMC Series: Because GETI GMC motor run capacitors utilize a compact cylindrical body with pre-attached insulated wire leads, you slip the component into tight side-clamp brackets. As a result, you service compact pump assemblies quickly without altering original wiring harnesses.

• F&T Dual Section Can: Because F&T manufactures dual 16uF 450V electrolytic capacitors inside a single 35mm aluminum can capacitor body, you replace two individual components using one chassis hole. Consequently, you preserve steady operating voltage across high-voltage power supply circuits while saving chassis space. Unlike a temporary motor start capacitor, these continuous-duty designs handle constant current without overheating.

You secure 3,000 hours of continuous operation at 450V by selecting EN60252-1 Class C rated components. When transient grid spikes strike single-phase AC motors, you rely on self-healing polypropylene film dielectrics. You keep equipment running because localized heat vaporizes the microscopic zinc-aluminum metallization around arc-over sites, isolating short circuits without interrupting motor operation.

Engineers prevent cabinet fires during thermal overloads by specifying UL94 V-0 rated flame-retardant resin encapsulation. You contain heat damage because these self-extinguishing compounds halt combustion within ten seconds of ignition, protecting nearby panel wiring.

In high-voltage audio amplifiers and heavy industrial drives, you prevent violent casing ruptures with metal-can designs featuring internal overpressure disconnectors. You eliminate structural shell failure during fault conditions because expanding internal gas lifts the top safety cover, snapping the internal connection wires.

You must drain stored electrical energy from high-voltage audio amplifiers and drive circuits after turning off the power. Hold a 10k-ohm, 5-watt resistor across the capacitor terminals for ten seconds. Check for zero volts with a multimeter across the spade connectors before touching the aluminum case. If you bridge the contacts with a screwdriver, you melt terminal pins and ruin internal metalized film layers.

Press 6.3mm female spade connectors onto the dual Faston tabs. You attach the main run wire to one tab and the auxiliary motor winding wire to the parallel tab on the same terminal pole. Use a ratcheting crimper on all wire terminations. If you leave connector jaws loose, high electrical resistance melts wire insulation during motor operation.

Fit continuous-duty polypropylene film capacitors into HVAC pumps and air compressors. You will burn out short-duty electrolytic start capacitors if you install them in continuous alternating current lines. Choose industrial-grade units from manufacturers such as DUCATI Energia or ICAR. Check the aluminum body for EN 60252-1 safety markings before final assembly.

Insert the bottom M8 mounting stud through your metal chassis floor or secure the outer shell with a rubber-lined clamp. Tighten the base hex nut to 4 Newton-meters with a torque wrench. You prevent chassis rattle and channel heat away from the capacitor core when you maintain solid metal-to-metal contact.

FAQ About 16uf 450v capacitors

Can I replace a 16uF 450V capacitor with a higher voltage rated model?

Yes, you can safely swap your 16uF 450V capacitor for one with a higher voltage rating, like 500V or 600V. The voltage rating marks the maximum electrical pressure the component handles, so a higher number creates a stronger safety cushion. Keep the capacitance strictly at 16uF. Matching this microfarad number ensures your equipment runs smoothly without drawing wrong current levels.

Before ordering, measure the physical space inside your equipment cabinet. Higher voltage capacitors usually have larger physical shells. a 500V model might not fit into the tight mounting bracket of your garage door opener or well pump.

What is the difference between a motor run capacitor and a motor start capacitor?

You use a start capacitor to give electric motors a short power burst during startup. A centrifugal switch disconnects this capacitor a second after the motor starts spinning. You use a run capacitor to maintain a constant magnetic field while the motor runs. Your 16uf 450v unit falls into the run capacitor category because it stays energized without overheating.

You can spot the physical difference in your shop. Start capacitors feature black plastic housings with microfarad values over 100uf. Run capacitors like your 16uf model use metal or rigid plastic cans built for constant voltage. Never swap these two types during repairs. Installing a start capacitor in a run circuit causes the component to swell and burst.

How do I safely test and discharge a 16uF 450V capacitor?

Unplug your appliance. To discharge the capacitor, grab a 20,000-ohm 5-watt resistor and attach insulated jumper clips to its leads. Touch one clip to each capacitor terminal for ten seconds. Hold the clips in place to drain the stored charge without sparks. Avoid touching metal terminals with bare fingers.

After you drain the voltage, set a digital multimeter to capacitance mode. Touch the meter probes to the capacitor leads. You should see a reading within ten percent of the rating, between 14.4 and 17.6 microfarads. If you read zero or a value below this range, replace the unit.
